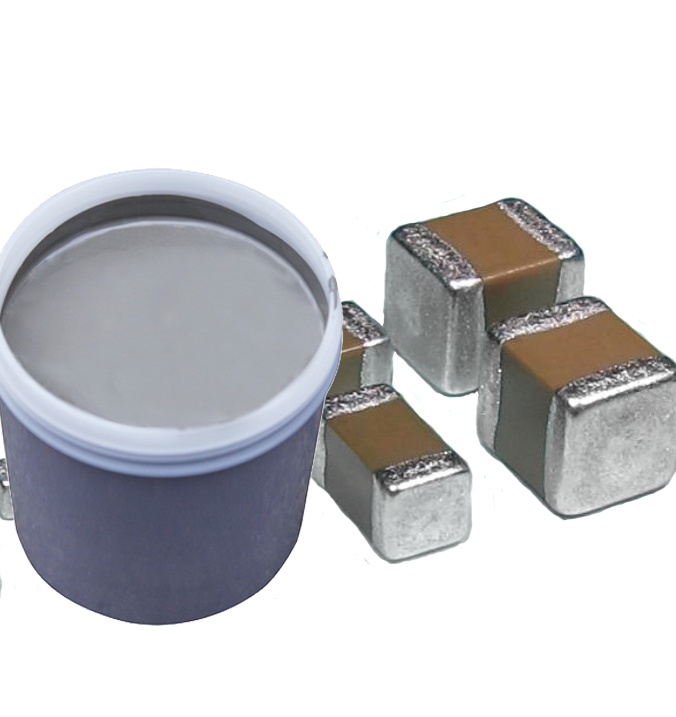

Palladium Silver Paste for Stacked Components CP08xx-A
Our Pd-Ag paste CP08xx-A series conductor paste is an environmentally friendly palladium silver conductor paste that does not contain toxic elements such as lead and cadmium, and complies with the European RoHS directive.
It has the characteristics of good leveling and dense film sintering, and is suitable for internal silver palladium conductor paste of chip capacitors, chip inductors, multi-layer piezoelectric, pressure-sensitive and other components
Benefits of the Pd-Ag paste include:
- Strong adhesion
- Good leveling
- Effectively Restrain from Ag ion Moving
Typical Application
- Chip capacitors
- Chip inductors
- Multi-layer piezoelectric, pressure-sensitive components
Technical Parameters
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 100/0 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 850-940℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 95/5 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 920-970℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 90/10 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 950-1000℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 85/15 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 980-1030℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 80/20 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 1010-1060℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 70/30 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 1100-1200℃ |
| Shelf Life | Six Months from Date of Shipment |
| Test | Properties |
|---|---|
| Solid Content (%) | 50~85 |
| Ag/Pd | 0/100 |
| Viscosity (Pa.S)(BrookfieldHBDV II+,CP52#,1.0rpm,25.0±0.5℃) | 50~70(could be customized) |
| Fineness(μm) | ≤10 |
| Screen Mesh(Stainless steel/ Polyester Mesh) | 300~500 |
| Leveling Time | 25℃, ≥10 min |
| Recommended Drying Conditions | 70-125℃ / 5-10min |
| Recommended Firing Conditions | 1480-1530℃ |
| Shelf Life | Six Months from Date of Shipment |
