Paste/Ink for Stainless Steel Substrates

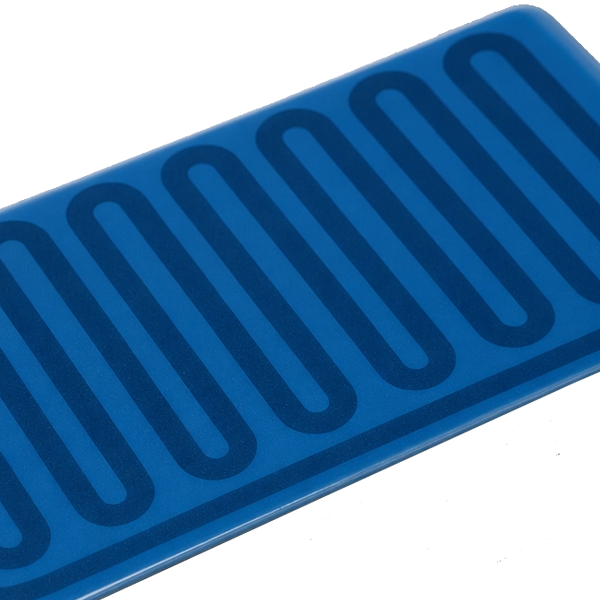

Pastes designed to bond reliably to stainless steel foils and plates, with thermal‑expansion matching and built‑in corrosion resistance. They are the go‑to choice for rugged heating elements, appliance panels, and sensor electrodes that must survive repeated thermal cycling.
| Description | Substrate | Firing Condition | Features & Application | |
|---|---|---|---|---|
| DP4301 | Dielectric Paste | 400-series (including 430/444, etc.) ferritic stainless steel substrates | 850℃/5~10min | Excellent insulating property, applied to thick film heating element |
| DP4302 | Dielectric Paste | 400-series (including 430/444/404, etc.) ferritic stainless steel substrates | 850℃/5~10min | Breakdown voltage >2000 V/3s (fired film thickness >80μm, 25℃) |
| DP3041 | Dielectric Paste | 300-series (including 304/316, etc.) austenitic stainless steel substrates | 850℃/5~10min | Breakdown voltage >2000 V/3s (fired film thickness >80μm, 25℃) |
| DP021 | Dielectric Paste | Polycrystalline titanium/monocrystalline titanium plate | 850℃/5~10min | Breakdown voltage >2000 V/3s (fired film thickness >80μm, 25℃) |
Conductor Paste for Stainless Steel Substrate
| Description | Substrate | Firing Condition | Conductivity | Features & Main Application | |
|---|---|---|---|---|---|
| CP4306 | Silver Conductive Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | ≤ 2.2mΩ/sq | Chip resistor, thick film hybrid integrated circuit, ceramic capacitor, filter and household appliance |
| CP093D | Silver Conductive Paste | SUS430 with printed dielectric paste | 850℃/10min | Specially designed for thick film circuits on stainless steel substrates. It is compatible with OP4302 and OP3041, with strong adhesion, good solderability and aging resistance, small sheet resistance, good printing performance, etc |
| Description | Substrate | Firing Condition | Sheet Resistance | TCR | Features & Application | |
|---|---|---|---|---|---|---|
| RP0115 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 10mΩ/sq ±10% | 1500ppm/℃ ±10% | Suitable for thick film circuits |
| RP0315 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 30mΩ/sq ±10% | 1500ppm/℃ ±10% | Suitable for thick film circuits |
| RP0515 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 50mΩ/sq ±10% | 1500ppm/℃ ±10% | Suitable for thick film circuits |
| RP1015 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 100mΩ/sq ±10% | 1500ppm/℃ ±10% | Suitable for thick film circuits |
| RP2015 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 200mΩ/sq ±10% | 1500ppm/℃ ±10% | Suitable for thick film circuits |
| RP1006 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 100mΩ/sq ±10% | 600ppm/℃ ±10% | Suitable for thick film circuits |
| RP2006 | Pd/Ag Resistor Paste | SUS430 with printed dielectric paste, ceramics | 850℃/10min | 200mΩ/sq ±10% | 600ppm/℃ ±10% | Suitable for thick film circuits |
| RPS8 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 8Ω/sq ±10% | <+600ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| RPS10 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 10Ω/sq ±10% | <+600ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| RPS50 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 50Ω/sq ±10% | <+400ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| RPS100 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 100Ω/sq ±10% | <+400ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| RPS150 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 150Ω/sq ±10% | <+400ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| RPS200 | Ru Resistor Paste | SUS430 with printed dielectric paste | 850℃/10min | 200Ω/sq ±10% | <+400ppm/℃ | High power load stability, customizable temperature coefficient, and good process stability |
| Description | Substrate | Firing Condition | Features & Application | |
|---|---|---|---|---|
| OP5501 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 550~650℃/8~12min | Blue color, applied to hybrid circuit, resistor plate, heating element, and sensitivity element |
| OP5502 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 550~650℃/8~12min | Gray colar, applied to hybrid circuit, resistor plate, heating element, and sensitivity element |
| OP6003 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 550~650℃/8~12min | Black color, applied to hybrid circuit, resistor plate, heating element, and sensitivity element |
| OP7501 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 750℃/5~10min | Excellent insulation strength |
| OP8501 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 850℃/10min | Blue color, applied to hybrid circuit, resistor plate, heating element, and sensitivity element |
| OP8504 | Overcoat Protective Paste | Stainless Steel with printed dielectric/conductor/resistor paste | 850℃/10min | Gray color, applied to hybrid circuit, resistor plate, heating element, and sensitivity element |
| OP4302 | Overcoat Protective Paste | 400-series stainless steel substrates with printed dielectric/conductor/resistor paste | 850℃/5~10min | Excellent insulation strength |
| OP3041 | Overcoat Protective Paste | 300-series stainless steel substrates with printed dielectric/conductor/resistor paste | 850℃/5~10min | Excellent insulation strength |
