Brushless DC Motor  BL2413O

Output: Approx 5W~30W  |  Outer Rotor  |  Weight: 35g(Approx)

Typical Application:

  • Vancuum Cleaner
  • Home Application
  • Personal Care
  • Business Equipment
  • Medical Apparatus

Motor Terminations



PINFUNCTION
01ST/SP
02FG
03PWM (TYP 20KHz)
04GND “-“
05VCC “+”

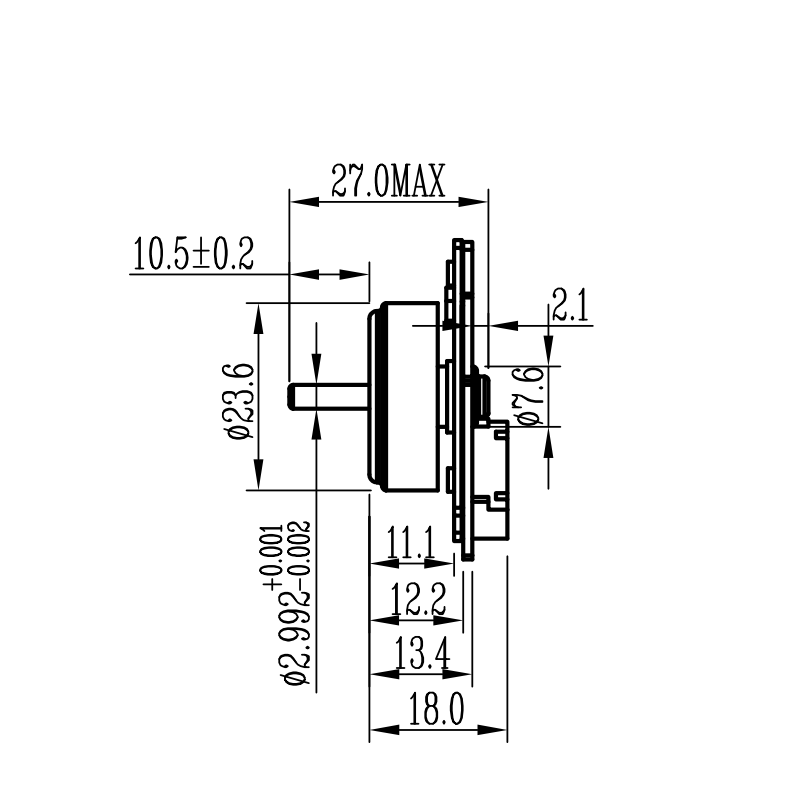

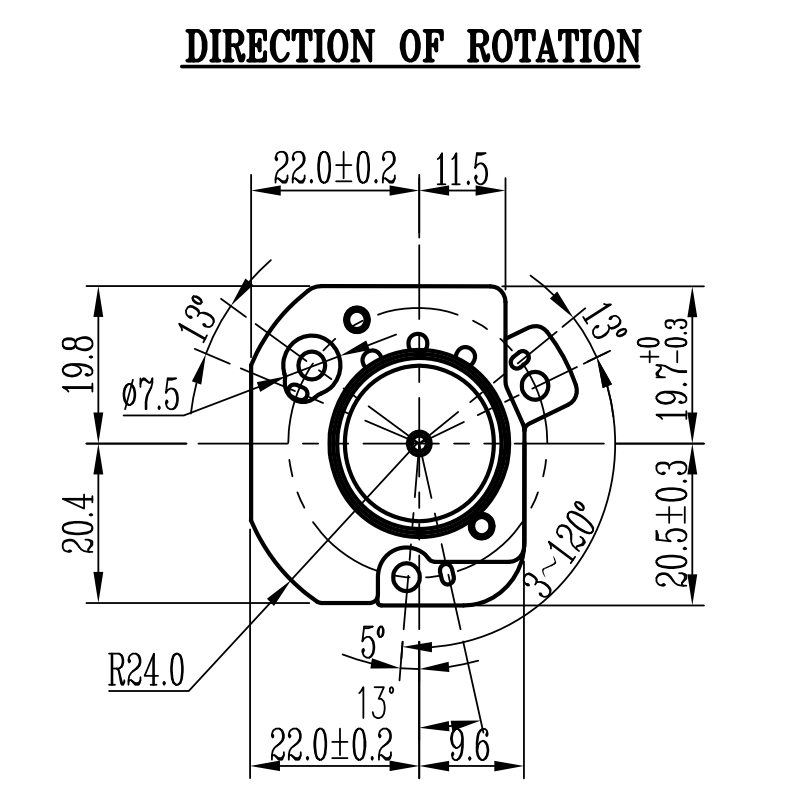

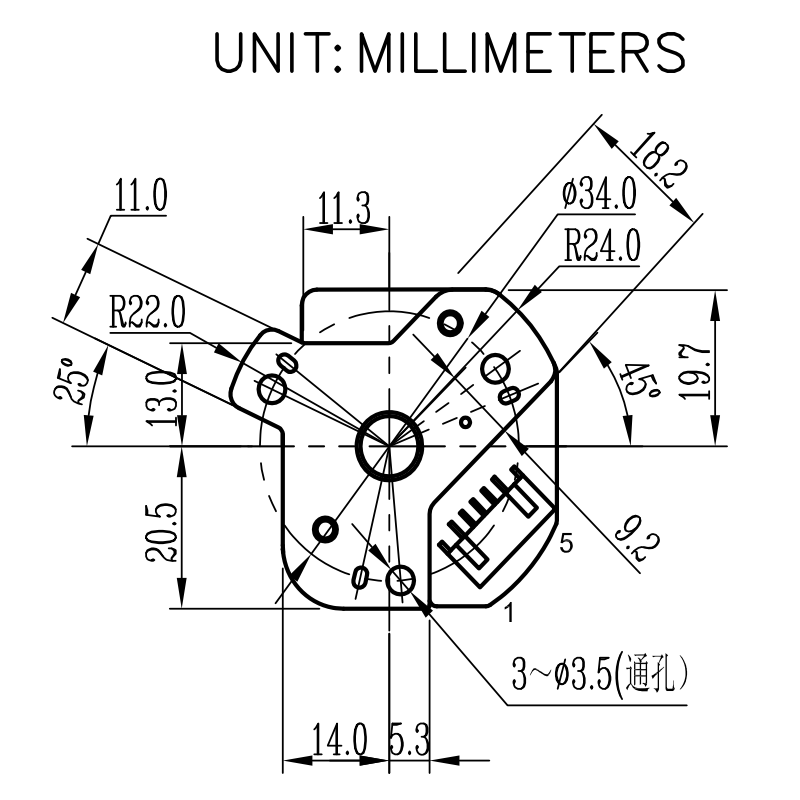

External Dimensions

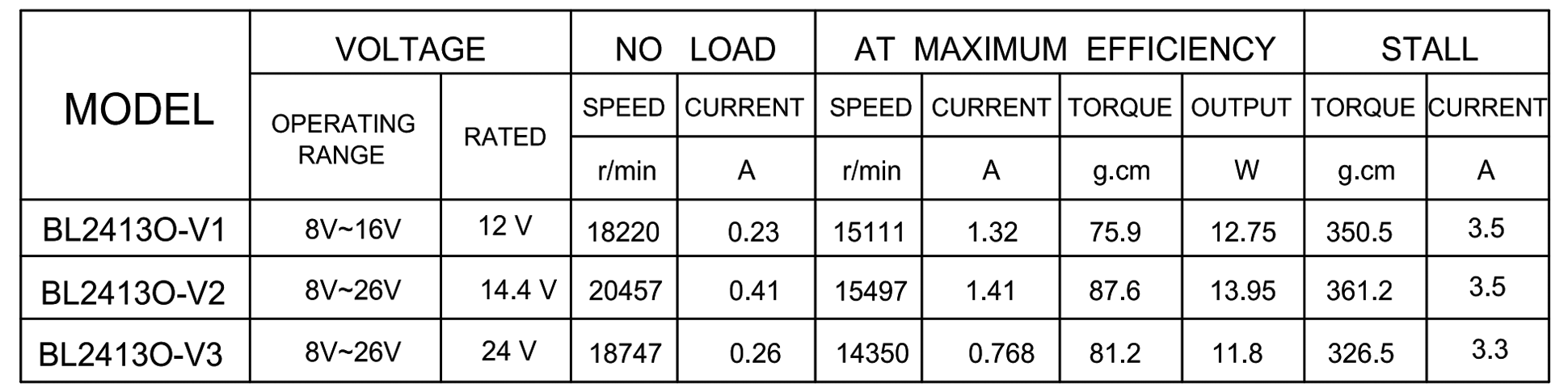

Major Characteristic Parameters

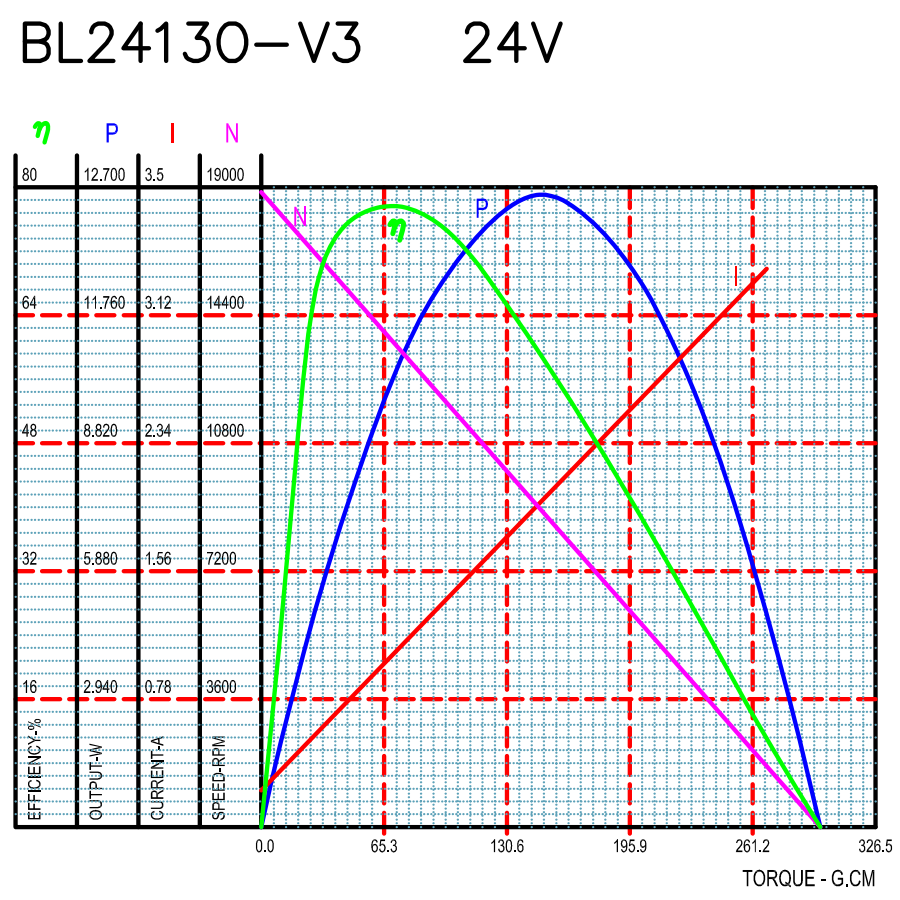

Performance Curves
