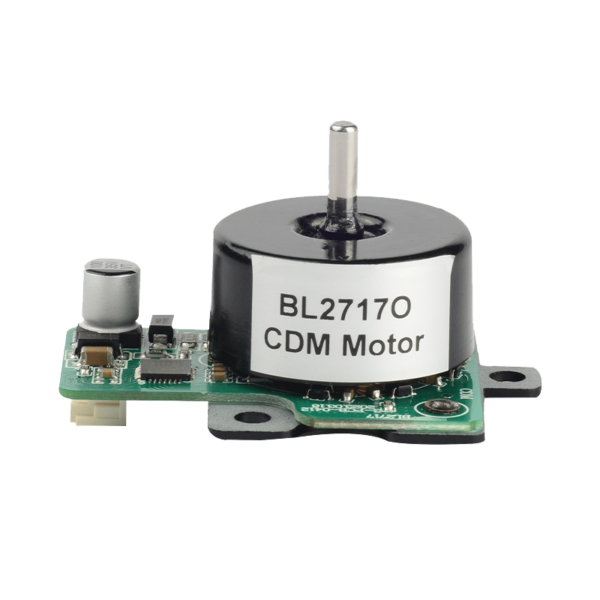

Brushless DC Motor BL2717O
Output: Approx 5W~35W | Outer Rotor | Weight: 50g(Approx)
Typical Application:
- Vancuum Clearner
- Home Application
- Personal Care
- Business Equipment
- Medical Apparatus
Motor Terminations
| PIN | FUNCTION |
|---|---|
| 01 | PWM |
| 02 | FG |
| 03 | VCC |
| 04 | GND |

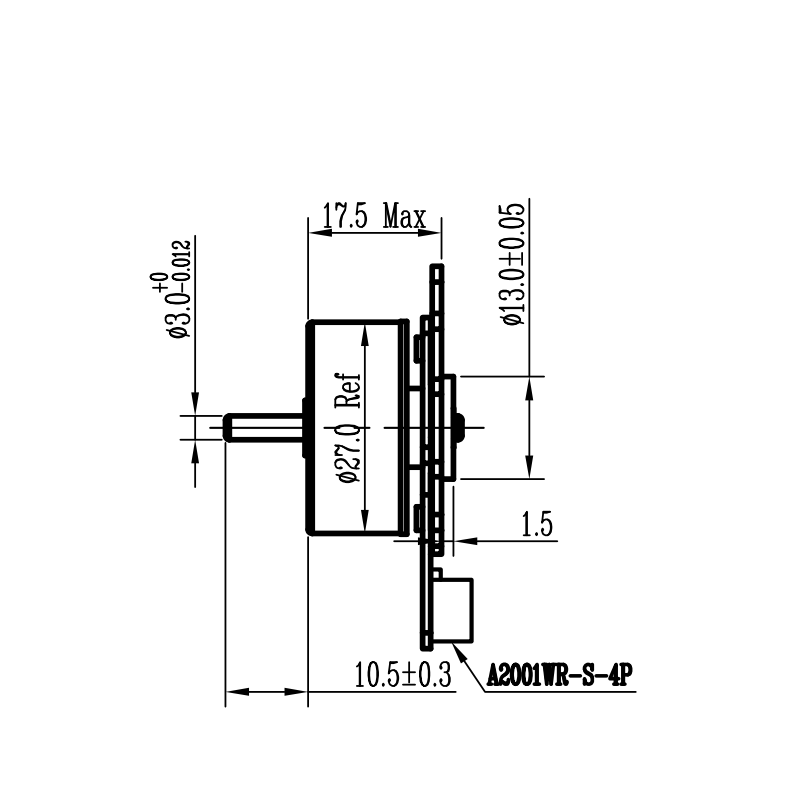

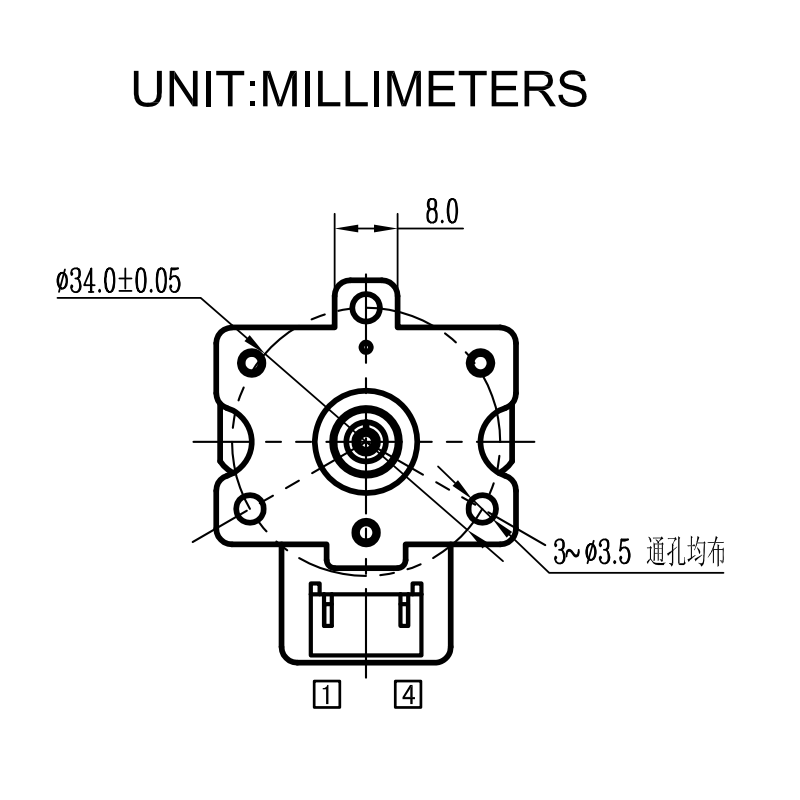

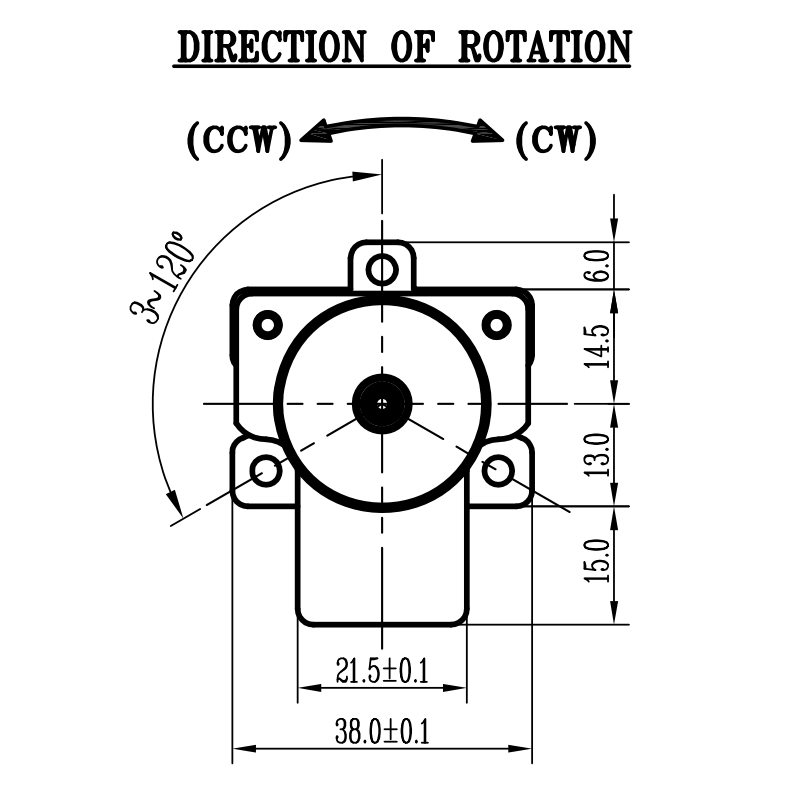

External Dimensions

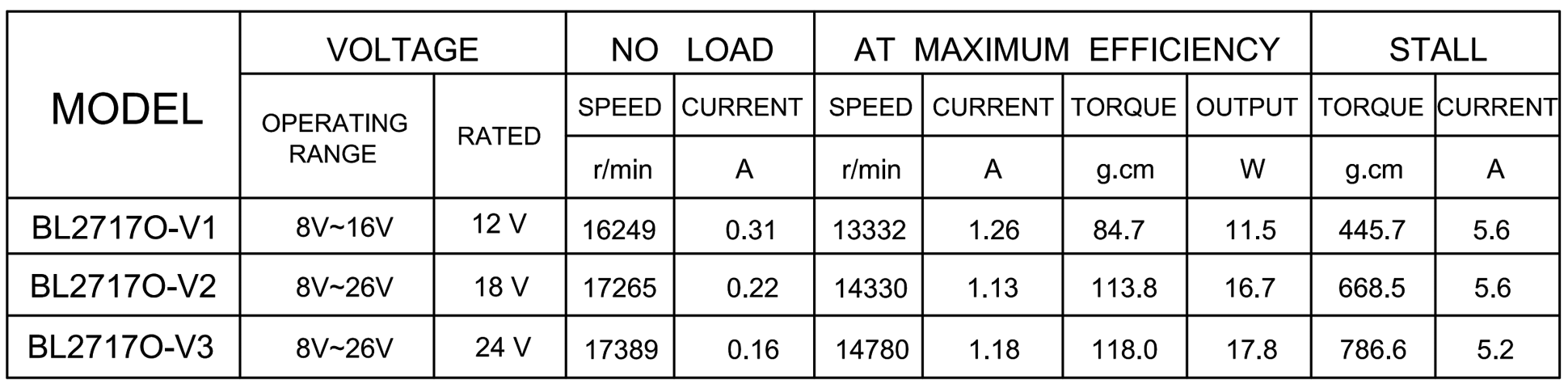

Major Characteristic Parameters

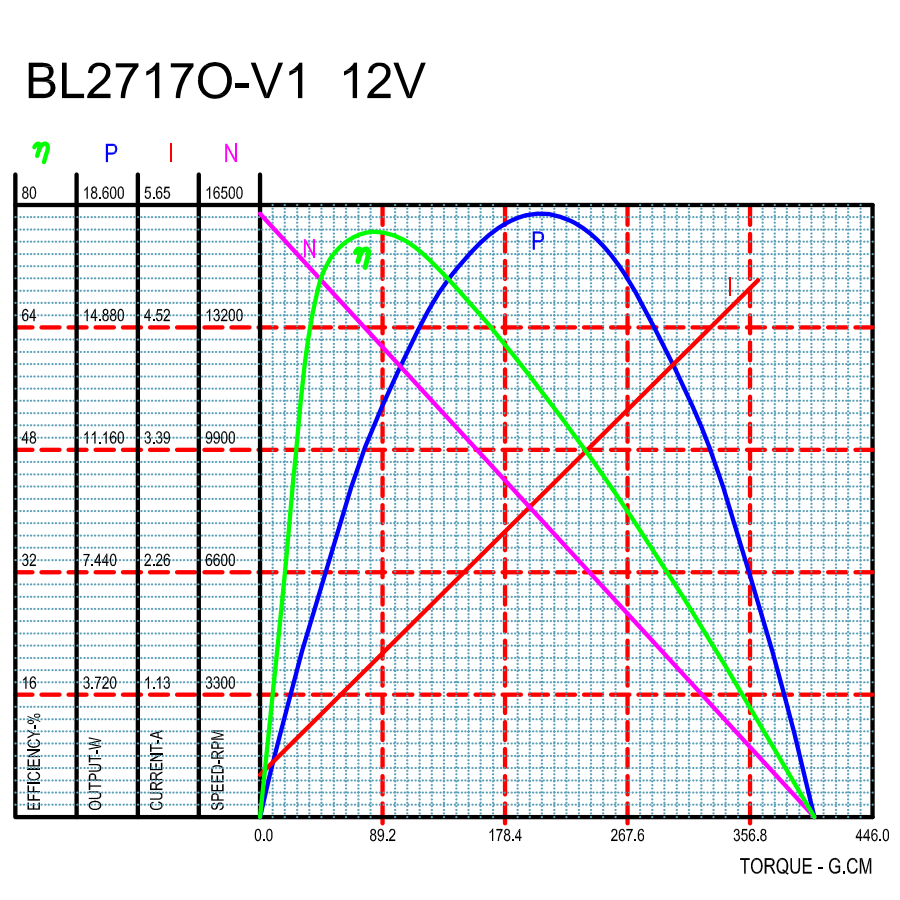

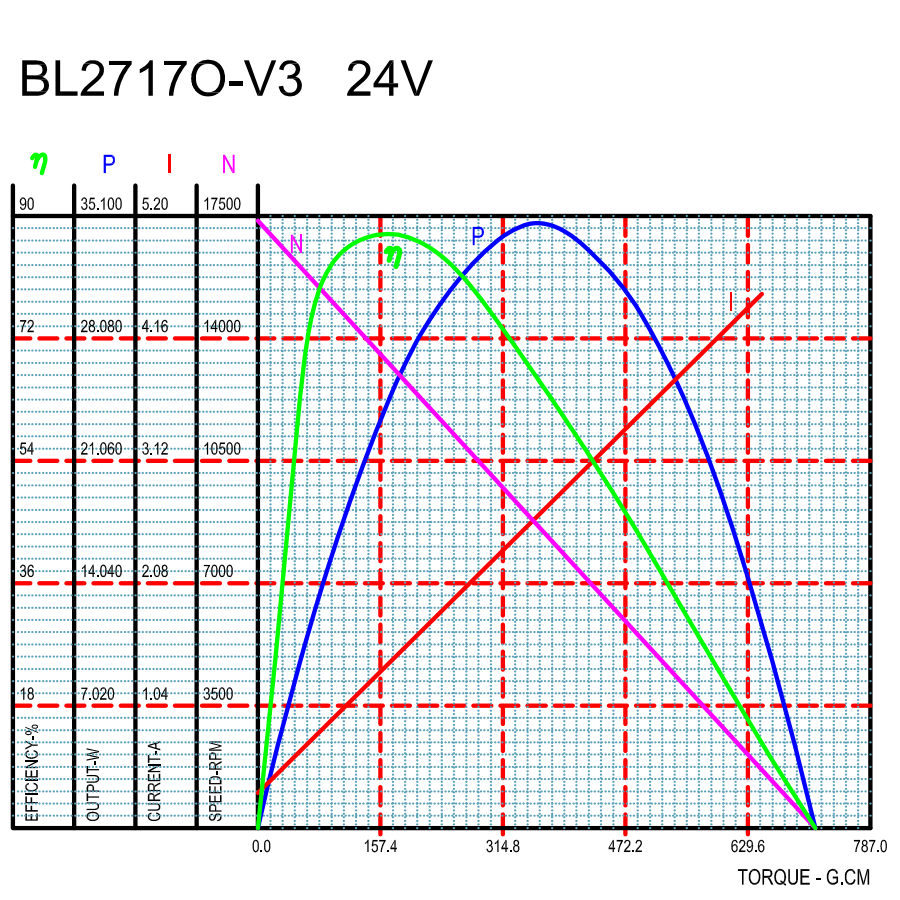

Performance Curves
