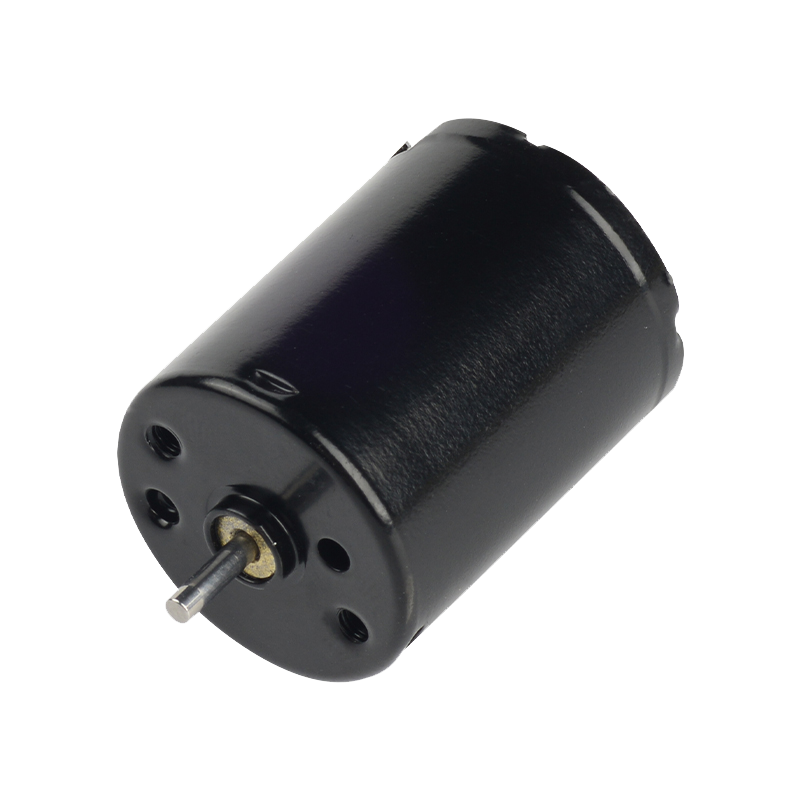

Brushless DC Motor BL2430I
Output: Approx 1W~8W | Inner Rotor | Weight: 50g(Approx)
Typical Application:
- Personal Care
- Home Application
- Power Tools
- Business Equipment
- Medical Apparatus
Motor Terminations
| PIN | FUNCTION |
|---|---|
| 01 | VCC |
| 02 | FG |
| 03 | CW/CCW |
| 04 | GND |
| 05 | PWM |

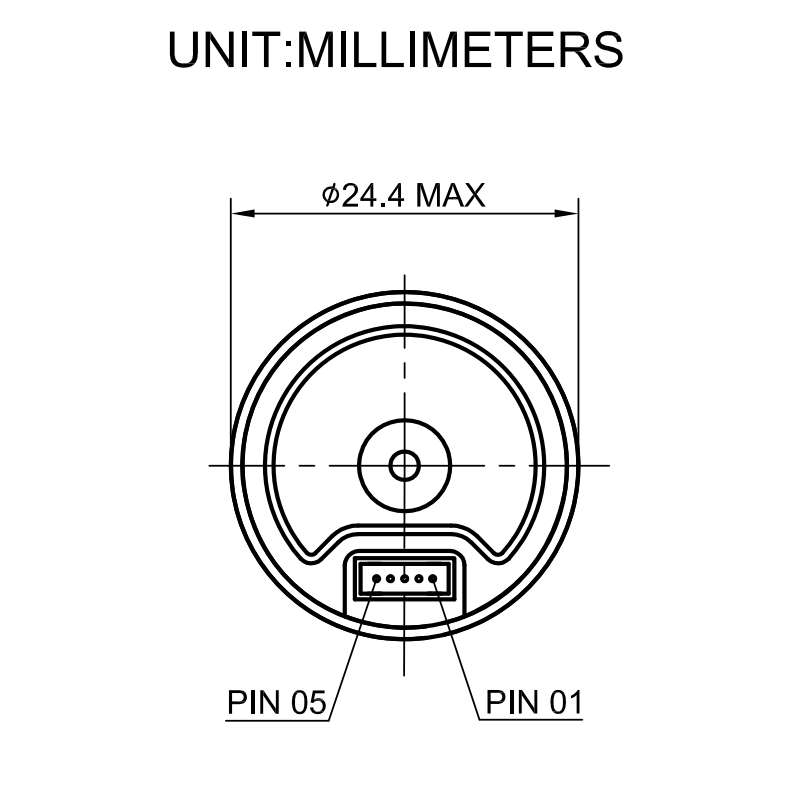

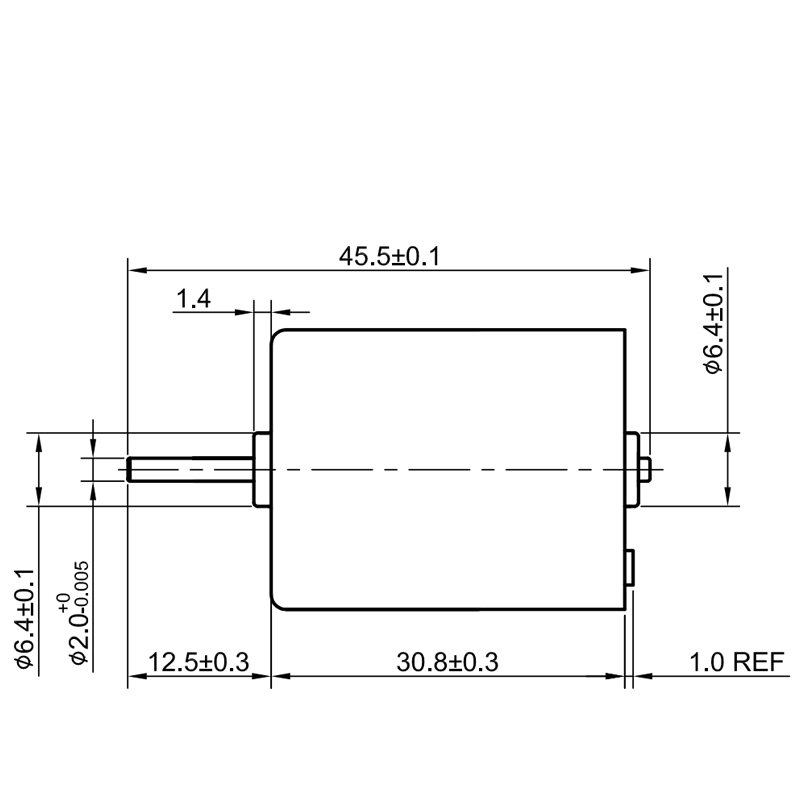

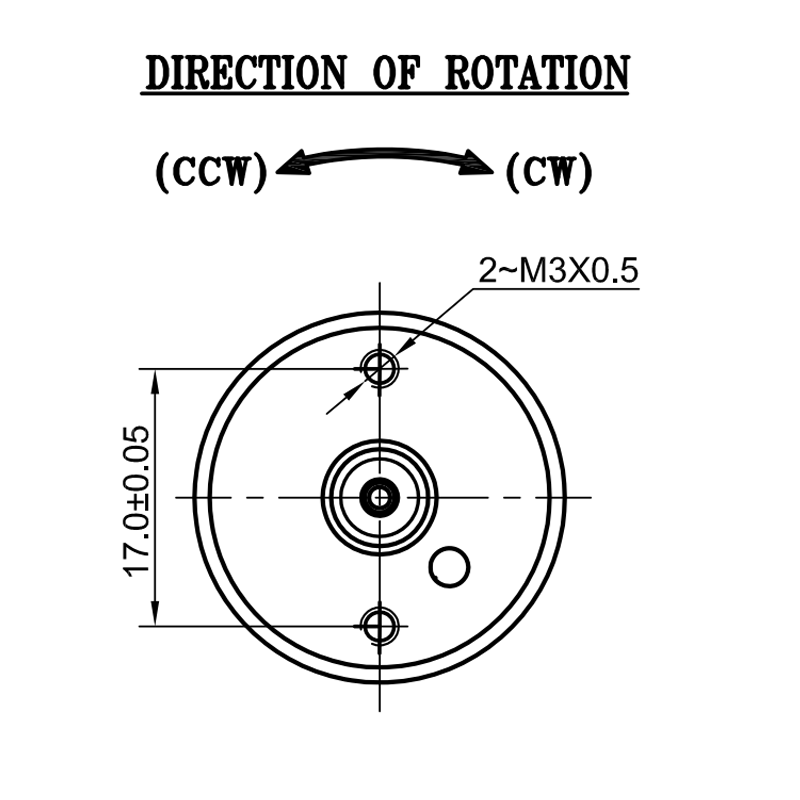

External Dimensions

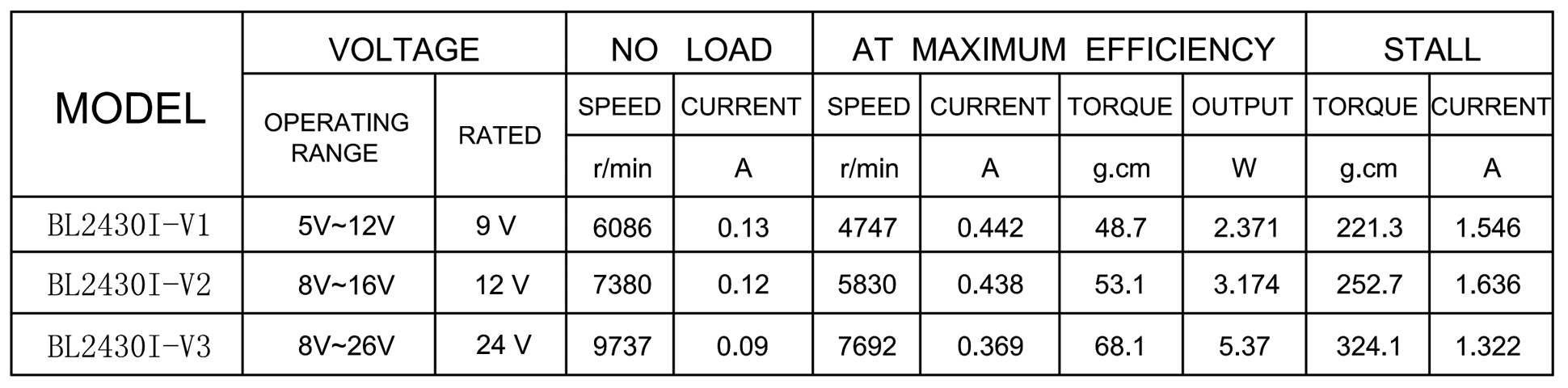

Major Characteristic Parameters

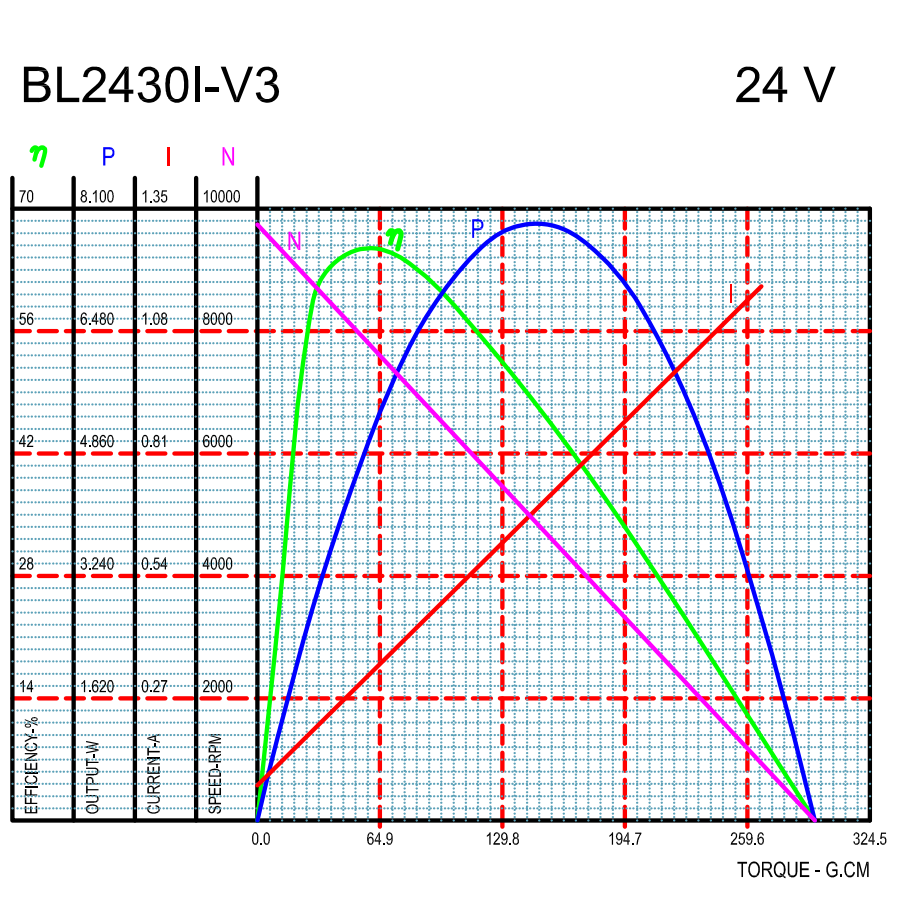

Performance Curves
